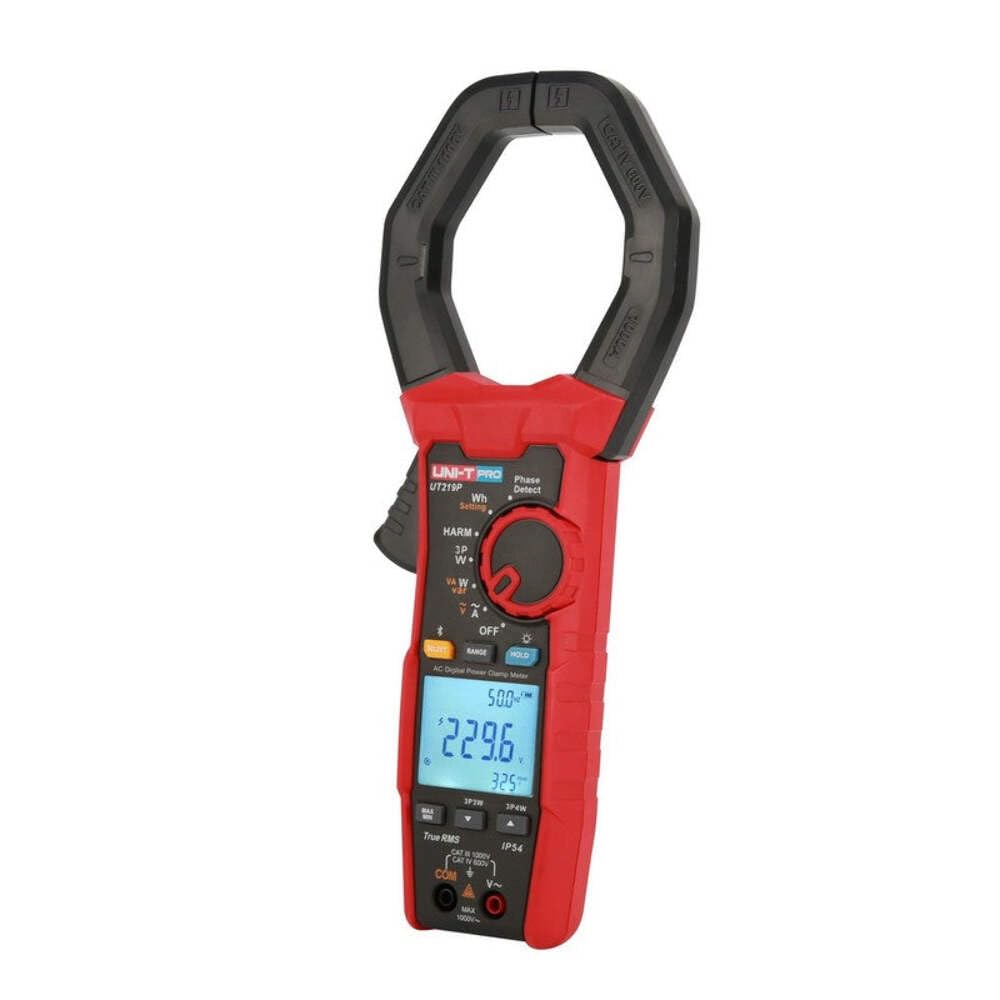

UNI-T UT219P Harmonic Power Clamp Meter Digital AC Current clamp Power Harmonic Test

Description

UT219P is a handheld harmonic AC power clamp meter with an AC fundamental frequency of 1kHz. It can be used to measure parameters such as AC voltage, AC current, active power, apparent power, reactive power, power factor, phase angle, energy statistics, frequency, phase sequence, total harmonic distortion rate, and various harmonic components. It also has single-phase, three-phase three wire, and three-phase four wire measurement modes, equipped with Bluetooth communication function. The measurement data can be monitored and recorded through mobile phones or tablets, generating reports with professional standards. It has the characteristics of easy operation, stable performance, and accurate measurement. Widely used in industries such as power, railway, computer, transportation, banking, communication, medical, and industrial control for power equipment testing.

Key Features

• •Active power/apparent power/reactive power/power factor/phase angle/frequency/40th harmonic analysis of voltage and current,
• •Featuring single-phase, three-phase three wire, and three-phase four wire measurement modes
• •The clamp head is designed with double openings, and the 85 * 75mm clamp can measure the current of thick wires (up to 75mm).
• •1000V AC RMS measurement (wider frequency response: 15Hz~1000Hz)
• •1000A AC RMS measurement, with both RMS and peak values displayed simultaneously (wider frequency response: 15Hz~1000Hz)
• •Waterproof and dustproof meet IP54 protection level
• •CATIII 1000V/CATIV 600V Safety Certification
• •Power measurement has a wide fundamental frequency range: 15Hz~1000Hz.
• •Motor phase sequence detection to prevent reverse phase of incoming power supply, causing motor reversal.
• •Bluetooth wireless data transmission, real-time monitoring and recording of measurement data through mobile phones or tablets
