MOLLOM VFD 220V 4KW 5HP 16A Single or Three Phase Input to 3 Phase 0-3000Hz Output Variable Frequency Drive Control Inverter for Spindle Motor CNC Speed Control

Description

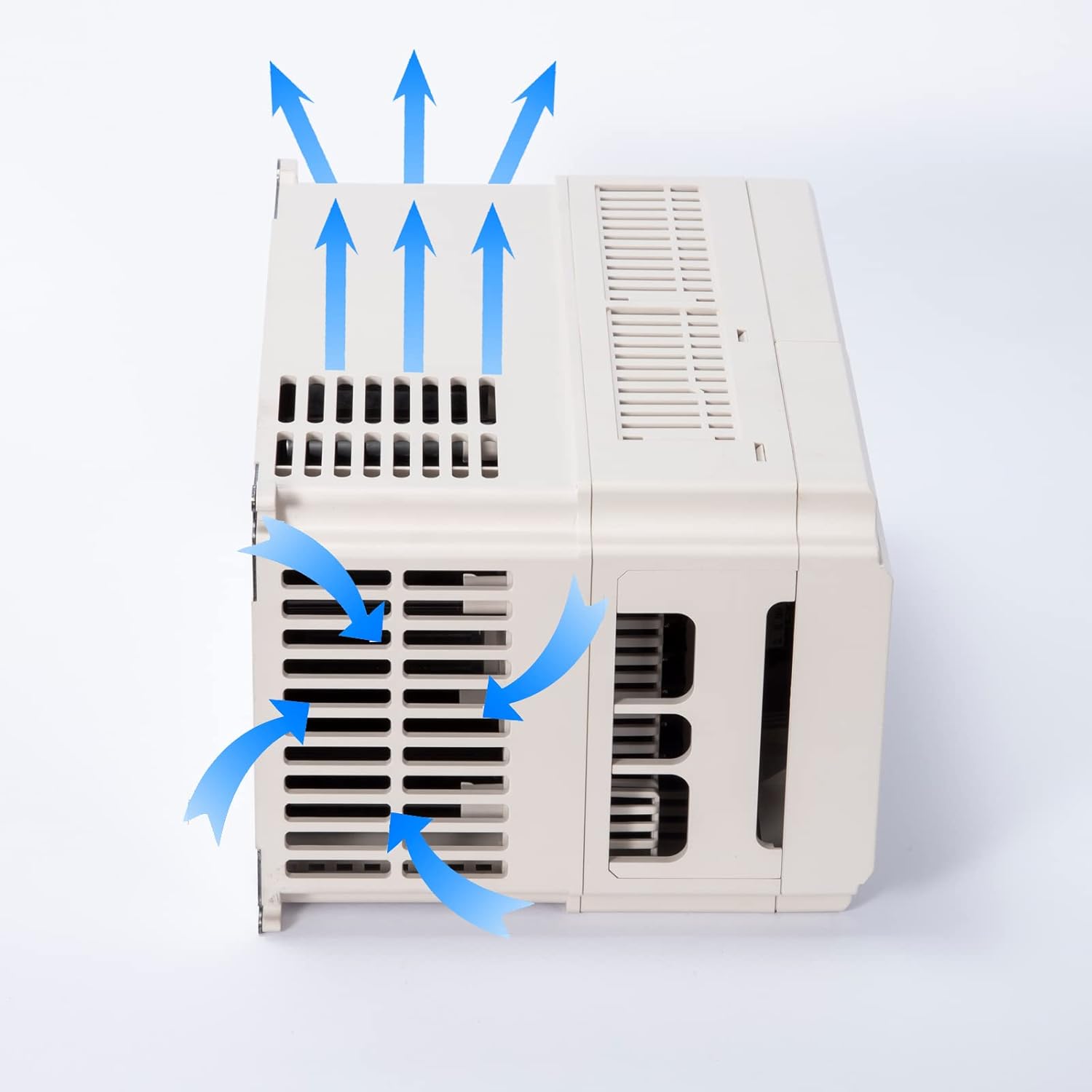

The function of frequency converter is to change the frequency and amplitude of motor drive current to achieve smooth control of motor speed. The emergence of frequency converters simplifies complex speed control, reduces the chance of motor failure and is more energy efficient. The VFD will generate heat during operation, and the VFD is equipped with a cooling fan inside to force air cooling. To ensure good ventilation and heat dissipation, the VFD (wall-mounted) should be installed in vertical direction. Unique dual screen design: The upper screen displays preset values and the lower screen displays the current operating parameters, which can display a wide range of operating parameters. It is more convenient and easy to work on. What can VFD do? It can soft start the motor and effectively protect the motor. It controls the motor frequency and speed, greatly reducing the waste of electricity, and can handle more precise equipment. What are the advantages of this VFD? It has PID control: it can handle jobs that require constant temperature and pressure. Diversity of external terminal control. RS485 communication. Support external potentiometers (voltage and current type), external relays.Analog input and output. I think it's too complicated to set parameters! Leave them to us! Please briefly describe your problem, it is best if you have a wiring diagram, and we will provide you with a plan and setup form that suits your requirements and makes handling the problem easy and simple. G70 0.75KW 380V G70 1.5KW 380V G70 2.2KW 380V G70 3KW 380V G75 4KW 380V G75 5.5KW 380V G75 7.5KW 380V

Key Features

• •【High Performance】Power: 4kw; Input voltage: AC 220V(±15%); Output voltage: AC 220V; Maximum output current:16A; Input frequency: 50/60 Hz; Output frequency: 0-3000 Hz; Input phase:Support Single or Three phase; Output phase: three-phase.VFD Dimension: 5.3 x 3.9 x 7.3 inch (L x W x H)
• •【Feature】Rich of digital and analogy control terminals for versitile control ，RS485 communication port, adopting standard international MODBUS main circuit control.With extremely strong anti-jamming capability, safe for you to use
• •【Smart Digital Display】 Adopting user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control
• •【Application Motor】CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines
• •【Importent Note】 This VFD surpport external resistor. If your motor is heavy load, pls choose a higher power level VFD or contact sales for model selection suggestion.**The working environment is relatively humid, with water mist, water droplets or metal objects falling in, which will cause a short circuit
• •***The frequency converter needs to be directly connected to the motor, and the start and stop of the motor must be controlled by the frequency converter, otherwise the frequency converter will be damaged
