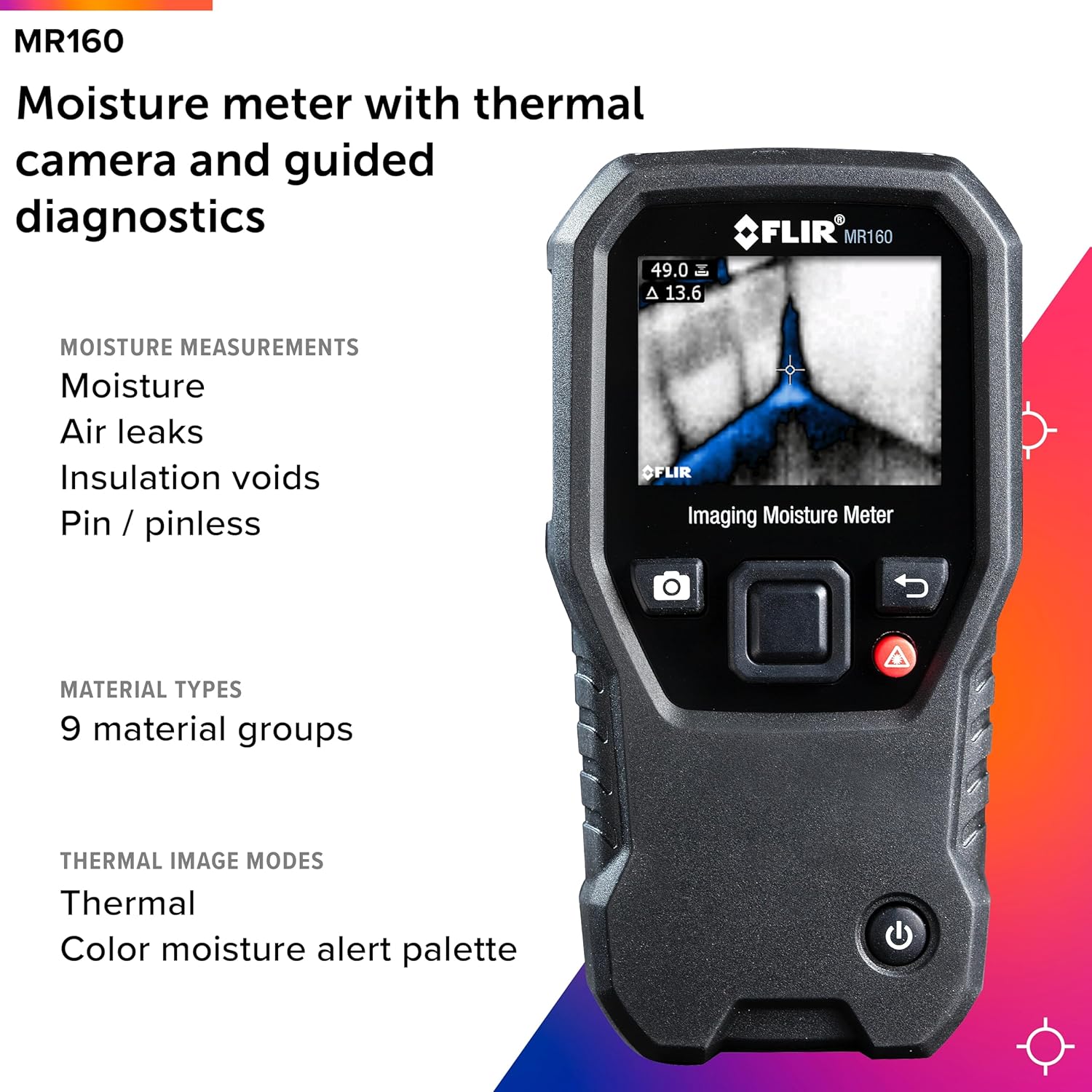

FLIR MR160 - Thermal Imaging Moisture Meter - with IGM (Infrared Guided Measurement), Pin and Pinless

Description

FLIR MR160 IGM Moisture Meter, Infrared Guided Measurement, Built-in Thermal Imager, Integrated Pinless Sensor, External Pin Probe, Rugged Design, Internal Rechargeable Battery Featuring Infrared Guided Measurement (IGM), the MR160 helps you quickly target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The MR160 can serve as your go-to troubleshooting tool right out of the box Key Features Built-in Thermal Imager Integrated Pinless Sensor and External Pin Probe Infrared Guided Measurement Stored Image Capacity up to 9999 images Automatic Image Calibrator Color moisture alert Portable, Tough and Durable Easily investigate insulation and moisture issues Specifications Image Display: Color moisture alert Minimum Focus Distance: 10cm (4") Spectral Response: 8–14 Micro m Thermal Image Resolution: 4800 pixels (80 × 60) Thermal Imaging Detector: FLIR Lepton microbolometer Field of View (W x H): 51° × 38° Image Calibration: Automatic Image Frame Rate: 9 Hz Measurement Resolution: 0.1 Pin Moisture Groups: 9 material groups Pin Moisture via Ext Probe Range (Accuracy): 0–100% WME (± 5%) Pinless Measurement Depth: 0.75" (19mm) Max Pinless Moisture Range: 0–100 relative measurement Response Time Pinless: 100ms Response Time Pin Mode: 750ms Thermal Sensitivity: less than 0.15°C Battery: 3.7 V, 2600 mAh Li-ion rechargeable via micro USB Battery power\Cont Run Time: 18 hours MAX Packaging Size: 4.7" x 5.5" x 13" Thermal Imaging Product with a frame rate of 9Hz or less are controlled by the U.S. Department of Commerce and classified under Export Control Classification Number (“ECCN”) 6A993.a for U.S. export control purposes and may not be exported, re-exported, or transferred to a “Military End-User” in any country except the U.S. or Canada, except as approved under a U.S. export or re-export license. “Military End-User” means national armed services (army, navy, marine, air force, coast guard), national guard, national police, government intelligence or reconnaissance organizations. Military End-User also means any person or entity whose actions or functions are intended to support Military End-Uses. Additionally, these products may not be used in the design, development, production or use of nuclear, chemical, or biological weapons or missiles.

Key Features

• •Troubleshoot Quickly : Easily investigate insulation and moisture issues using MR160's pinless technology or external pin probe for both non-destructive and contact measurements
• •Identify and Verify Moisture : Use the built-in thermal imager to locate areas of moisture, verify the moisture level using pin and pinless moisture measurement
• •Portable, Tough, Durable : Rugged design, small form factor, and internal rechargeable battery for convenience to carry with you
• •2 Inch pins
• •Limited 10-Year Warranty
